Join is a combination of a Cartesian product followed by a selection process. A Join operation pairs two tuples from different relations, if and only if a given join condition is satisfied.

SQL Join is used to fetch data from two or more tables, which is joined to appear as single set of data. SQL Join is used for combining column from two or more tables by using values common to both tables. Join Keyword is used in SQL queries for joining two or more tables. Minimum required condition for joining table, is (n-1) where n, is number of tables. A table can also join to itself known as, Self Join.



Types of Join

The following are the types of JOIN that we can use in SQL.

• Inner
• Outer
• Left
• Right

Cross JOIN or Cartesian Product

This type of JOIN returns the cartesian product of rows from the tables in Join. It will return a table which consists of records which combines each row from the first table with each row of the second table.

Cross JOIN Syntax is,

SELECT column-name-list

from table-name1

CROSS JOIN

table-name2;

Example of Cross JOIN

The class table,

The class_info table,

Cross JOIN query will be,

SELECT *

 from class,

 cross JOIN class_info;

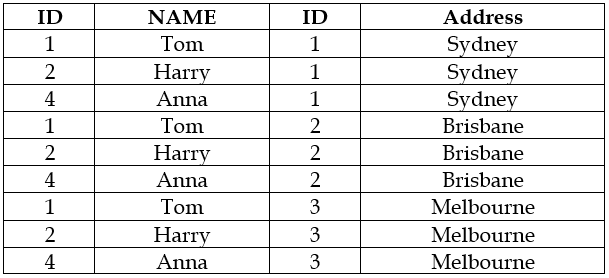

The result table will look like,



INNER Join or EQUI Join

This is a simple JOIN in which the result is based on matched data as per the equality condition specified in the query.

Inner Join Syntax is,

SELECT column-name-list

from table-name1

INNER JOIN

table-name2

WHERE table-name1.column-name = table-name2.column-name;

Example of Inner JOIN

The class table,

The class_info table,

Inner JOIN query will be,

SELECT *

from class, class_info

where class.id = class_info.id;

The result table will look like,



Natural JOIN

Natural Join is a type of Inner join which is based on column having same name and same datatype present in both the tables to be joined.

Natural Join Syntax is,

SELECT *

from table-name1

NATURAL JOIN

table-name2;

Example of Natural JOIN

The class table,

The class_info table,

Natural join query will be,

SELECT *

from class NATURAL JOIN class_info;

The result table will look like,

In the above example, both the tables being joined have ID column (same name and same datatype), hence the records for which value of ID matches in both the tables will be the result of Natural Join of these two tables.



Outer JOIN

Outer Join is based on both matched and unmatched data. Outer Joins subdivide further into,

• Left Outer Join
• Right Outer Join
• Full Outer Join

Left Outer Join

The left outer join returns a result table with the matched data of two tables then remaining rows of the left table and null for the right table's column.

Left Outer Join syntax is,

SELECT column-name-list

from table-name1

LEFT OUTER JOIN

table-name2

on table-name1.column-name = table-name2.column-name;

Left outer Join Syntax for Oracle is,

select column-name-list

from table-name1,

table-name2

on table-name1.column-name = table-name2.column-name(+);

Example of Left Outer Join

The class table,

The class_info table,

Left Outer Join query will be,

SELECT *

FROM class LEFT OUTER JOIN class_info

ON (class.id=class_info.id);

The result table will look like,



Right Outer Join

The right outer join returns a result table with the matched data of two tables then remaining rows of the right table and null for the left table's columns.

Right Outer Join Syntax is,

select column-name-list

from table-name1

RIGHT OUTER JOIN

table-name2

on table-name1.column-name = table-name2.column-name;

Right outer Join Syntax for Oracle is,

select column-name-list

from table-name1,

table-name2

on table-name1.column-name(+) = table-name2.column-name;

Example of Right Outer Join

The class table,

The class_info table,

Right Outer Join query will be,

SELECT *

FROM class RIGHT OUTER JOIN class_info

on (class.id=class_info.id);

The result table will look like,



Full Outer Join

The full outer join returns a result table with the matched data of two table then remaining rows of both left table and then the right table.

Full Outer Join Syntax is,

select column-name-list

from table-name1

FULL OUTER JOIN

table-name2

on table-name1.column-name = table-name2.column-name;

Example of Full outer join is,

The class table,

The class_info table,

Full Outer Join query will be like,

SELECT *

FROM class FULL OUTER JOIN class_info

on (class.id=class_info.id);

The result table will look like,
